Technical Facts
- Input
- 220-240 VAC 50 Hz 0,6 A
- Mains Output
- 220-240 VAC 50 HZ
- SSR on phase line
- 0-10 V Output
- 0-10 VDC
- 7mA
- Dimensions
- 56,5 x 35,8 x 22,3 mm
- Protection
- IP20
- Built-in Class II

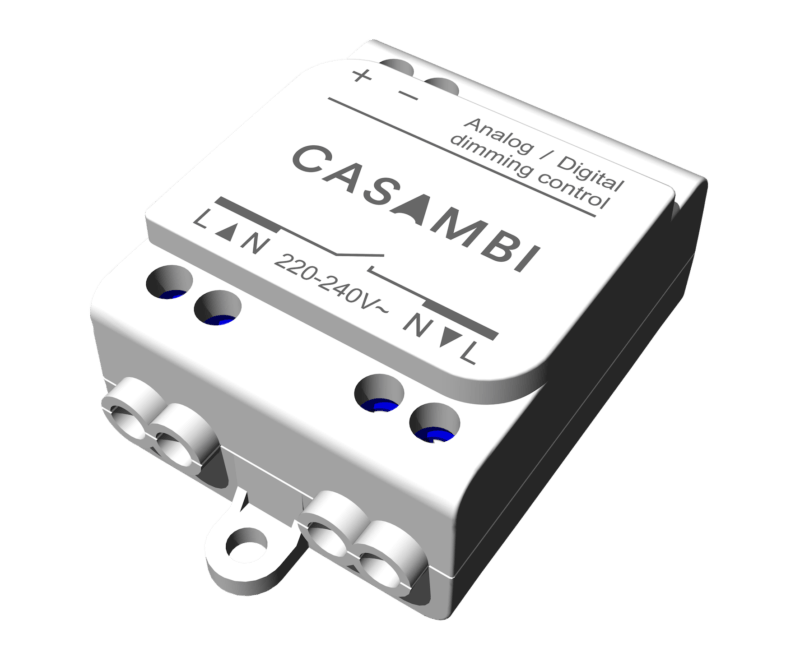

CBU-ASD is a wireless control unit for LED drivers with 0-10V, 1-10V or DALI dimming interface. The control output can be configured either as analogue 0-10V (and 1-10V) or as a digital standalone DALI control interface.
When the output is configured as Standalone DALI [1], CBU-ASD acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This so-called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable colour (RGB) or colour temperature, while keeping the wiring and number of components at their minimum.
- Wirelessly controllable
- No need for an external gateway device
- Forms automatically a fast wireless mesh network
- Very small form factor for luminaire installation
- Configurable analog/digital output
- Analog output: 0-10V sinking/sourcing
- Digital output: Standalone DALI
- Easily implemented RGB and color temperature controls
- Controllable switched mains output
- Dimming from a standard on/off wall switches
- Possibility to configure to support “no voltage” push button
- Can be configured to work with a standard PIR sensor (via smart-switching)
- Device firmware can be updated over-the-air
- Casambi cloud service enhances the user experience
