CBU - ASD

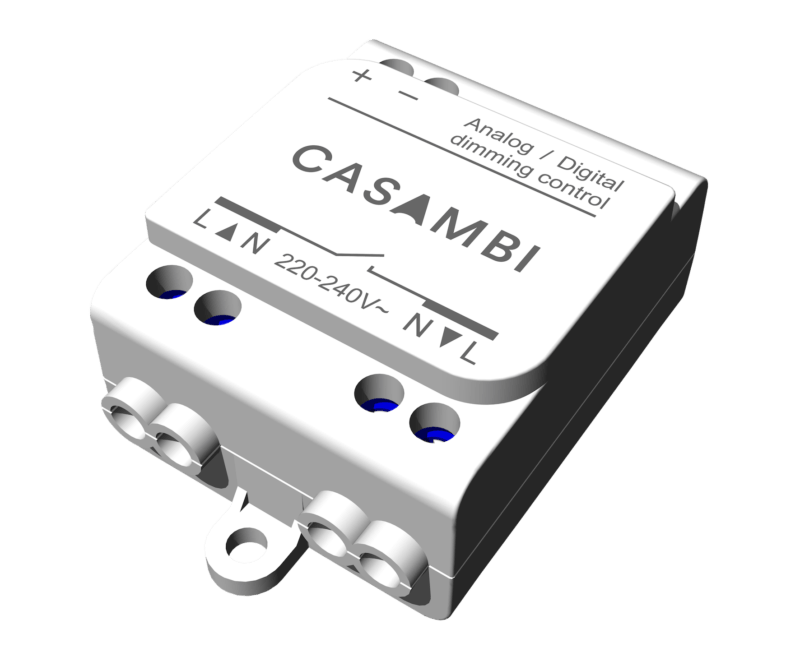

CBU-ASD is a wireless control unit for LED drivers with 0-10V, 1-10V or DALI dimming interface. The control output can be configured either as analogue 0-10V (and 1-10V) or as a digital standalone DALI control interface. When the output is configured as Standalone DALI [1], CBU-ASD acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This so-called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable colour (RGB) or colour temperature, while keeping the wiring and number of components at their minimum.

Enquire

Key Features

Technical Facts

  • Input
  • 220-240 VAC 50 Hz 0,6 A
  • Mains Output
  • 220-240 VAC 50 HZ
  • SSR on phase line
  • 0-10 V Output
  • 0-10 VDC
  • 7mA
  • Dimensions
  • 56,5 x 35,8 x 22,3 mm
  • Protection
  • IP20
  • Built-in Class II
Enquire
